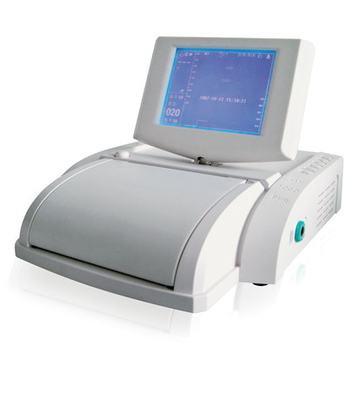

Automatic real-time analysis of the FM FHR TOCO function fetal portable patient monitor

Features:

• 6-inch LCD screen can be adjusted 90 degrees from up and down and rotate 350 degrees
• Latest Uterine Contraction probe has function of awaking the fetus
• Display of the patient data and curve clearly
• Print paper fetal heart rate 120-160bpm
• Manual records fetal movement
• Audible and visual alarm for high and low fetal heart rate
• Continuous 24-hour real-time monitoring function
• Continuous 12-hour patient curve and data storage and playback
• With picture freeze function
• Single, Twins Monitoring optional
• 9 chip pulse width beam probe
• Extra-long life, high-resolution built-in thermal printer
• Built-in communication port, can be connected with central monitoring system

Technical Specifications:

• Security: IEC 60601-1-4, IEC 60601-1-2
• Anti-shock types: Type I, no internal power supply
• Anti-electric Shock Degree: B
• Power Supply: Working Voltage: AC 100V ~ 240V
• Frequency: 50Hz/60Hz
• Environment:
  Transport and storage:
      Temperature: -10 °C ~55 °C
      Relative Humidity: ≤ 93%
      Atmospheric pressure: 70kPa ~ 106kPa
  Working environment
      Temperature: 5 °C~ 40 °C
      Relative Humidity: ≤ 80%
      Atmospheric pressure: 70kPa ~ 106kPa
• Display:
  Dimensions: 8.4" color LCD display, folding 60 degree
  Display Content: bed No. , pregnancy age, age, single/twins type, paper speed, date, time,  volume, alarm status, transducer connection status, recorder status, FHR data and wave, Contraction data and wave, Fetal move times and mark etc.
• Print:
  Record Paper two-double type Z
  Print Width: 112mm
  Valid Print Width: 104mm
  Signal Interface: RJ 45
• Ultrasound probe:
  Nominal Frequency: 1.0MHz
  Work Frequency: 1.0MHz±10%
  FHR Rang: 65BPM～210BPM,Allow error: within ±2bpm
  Resolution: 1BPM
  Accuracy : ±2%
• TOCO:
  TOCO range: 0～100%
  Resolution: 1
• Fetal Marking: For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section
• FHR Alarm: Alarm for high and low FHR, which exceeds appointed limit
• Transducers:
  Ultrasonic Transducer:
  System: Pulsed Doppler
  Dimension: 90mm × 65mm
  TOCO Transducer:
  System: Passive Straingauge
  Dimension: 102mm × 50mm
  Remote Marker:
  Length: 3.2m
• Dimension: 320(L) x 260(W) x 80(H) mm
• Weight: about 3.2 Kg
