0 ~240 BPM Backlight Probe Inspection Portable Fetal doppler For Hospital, Clinic and Home

0 ~240 BPM Backlight Probe Inspection Portable Fetal doppler For Hospital, Clinic and Home

Descrition:

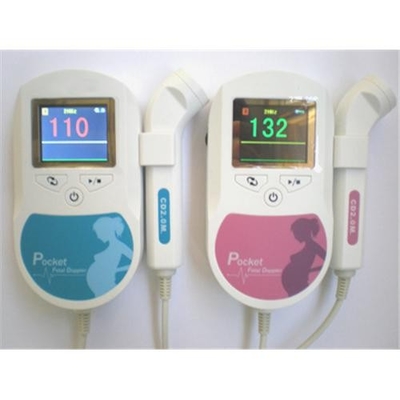

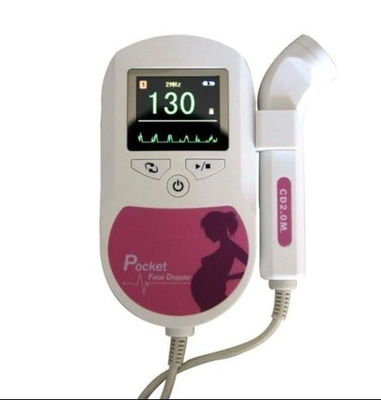

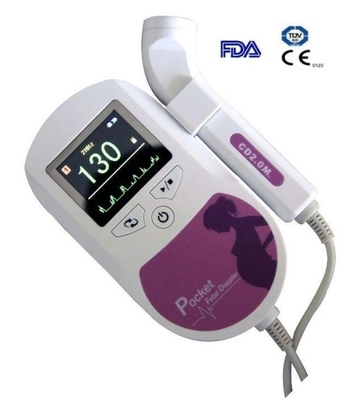

Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman.

It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc.

It has 3 work modes: real-time FHR display mode, averaged FHR display mode, and manual mode.

It also has audio output, and can be connected with earphone or recorder with audio input.

Main Features:

■Beautiful shape, portable, easy operation

■The probe has bending structure which is easy to operate and can increase the ease of the pregnant women, embodies the humane care design

■Battery status indicator

■The probe can be changeable

■Probe inspection

■Built-in speaker

■Output for headphones

■Backlight

■Auto shut off

■Two pieces of standard 1.5V alkaline battery available which can work no less than 8 hours

Main performance:

Anti-electroshock Type: Internally powered equipment

Anti-electroshock Degree: Type B applied part

LCD Display: 38 mm×28 mm

FHR Measuring Range: 50 ~240 BPM (BPM: beat per minute)

Resolution: 1 BPM

Accuracy: ±2 BPM

Power Consumption: < 0.8 W

Voltage: DC 3.0 V

Power Supply: Two 1.5V(AA size)alkaline battery

Suitable Using Range: Suitable for use after the 12th week of pregnancy

Auto Shut-OFF: After 1 minute no signal, power off automatically

Working Frequency: 2.0 MHz±10%

Ultrasound Output Power: P < 10 mW

Ultrasonic Output Intensity: Isata < 5 mW/cm²

Working Mode: Continuous wave Doppler

Effective Radiating Area of Transducer: 157 mm²±15%

Physical Characteristic

Dimension:(L)135mm  × (W)92mm  × (H)29mm

Weight: About 245g (including batteries)
