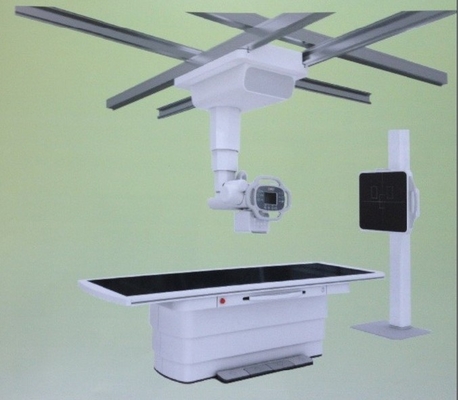

SUSPENDED ARM STAND: X2200

Features:

    ◆  Wide clinical applications

    ◆  Flexible component geometry

    ◆  Advanced new generation digital detector

    ◆  User friendly interface

    ◆  Powerful per-processing and post-processing

    ◆  Comprehensive network compatibility

    ◆  Affordable and economical

Standard Configration:

    ◆  High frequency high voltage generator

    ◆  Proven X-ray tube

    ◆  Excellent digital detector

    ◆  Outstanding collimator and grid

    ◆  Flexible ceiling suspended arm

    ◆  Mobile carbon fiber radiographic table

    ◆  Vertical wall stand

    ◆  Advanced imaging system

Detector components:

    ◆  Detector Type: FPD

    ◆  Large Field detector: 43x43.9 cm

    ◆  Matrix: 3008(H) x 3072 (V) (about 9.2 megapixel)

    ◆  Resolution: 3.7 LP/mm

    ◆  Type Stationary, removable

    ◆  Focal Distance: 100 - 180cm (40"-72")

    ◆  Certification: IEC60601-1, IEC60601-1-2

                              MDD93/42/EEC (CE Marking)

The imaging detector can rotate +/-90° and the stand has a rotational movement range of 180° for optimal positioning.

This vertical system can be configured for any room with optional imaging detector handedness on either side of the

stand. An attached control pad with programmable automatic positioning is standard, all at a surprisingly affordable cost.

The unique IDC passive trigger design allows this system to be integrated in exisiting X-ray rooms.

IDC's product line also includes a ceiling mounted tube (CMT) with one way servo and multiple patient table options

which allow you to create an imaging solution to fit your facility's imaging needs and budget.
