3- Color Histograms 20 Parameter Double Channel Full Auto Hematology Analyzer 9.6ul Venous

3- Color Histograms 20 Parameter Double Channel Full Auto Hematology Analyzer 9.6ul Venous

Descrition:

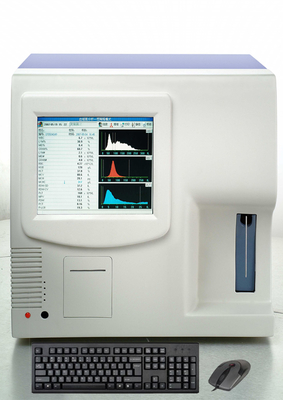

Auto Hematology Analyzer TOP-8800:

Large color LCD display with 8 inch, resoluion:640×480 dot;

Double channel;

Throughput: more than 60 samples per hour;

Principle:Electrical resistance method for counting, SFT method for hemoglobin;

Parameter:3-part differentiation of WBC, 22 parameter and 3-color histograms(WBC, RBC, PLT).

Specifications:

Auto Hematology Analyzer TOP-8800:

Sample volume:Twig blood 20ul,

                         Anti-coagulate blood in Vein 20ul

Working mode: double counting pathway +independent HGB detection system

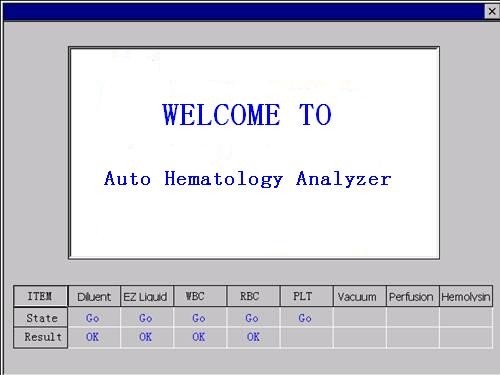

Operation mode: color windows interface, figure button, mouse input

Dimension of gem aperture: WBC: 100um RBC/PLT: 80 um

Throughput: more than 60 samples per hour, 24 hour running continuous auto stand-by

Storage: up to 10000 sample results including 3 histograms can be stored

WBC≤2.5%(7.0-15.0)      0.01-99.9×109/L

RBC≤2.0%(3.50-6.00)      0.01-99.9×1012/L

HGB≤1.5%(110-180)         1-300g/l

MCV≤0.4%(80.0-110.0)     40-150fl

PLT≤5.0%(200-500)          1-999×109/L

Display: Large color LCD display with 8 inch, resoluion:640×480 dot

Interface: 1 parallel interface, 2 USB interfaces (1 keyboard interface, 1 mouse interface), 1 RS232 interfaces (with net)

Report: Built-in rapid thermal recorder, optional external printer, Standard English report, 8 report formats

Structure: fan-door structure, flexible and easy to use

Ambient Operating:Temperature: 10℃-35℃, can work in the altitude environment. Humidity: 10℅-90℅

Power supply: AC100-240V 50/60 HZ

Clinical Function:3-part DIFF on WBC, 22 Parameters

 ●  Sample dosage: Twig blood 20ul, Anti-coagulate blood in Vein 20ul

 ●  Work model:   Dual Channel test, auto-add quantitative lyses.

 ●  Result save:    Save all the 10000 tests’ parameters and 3 histograms.

 ●  Rate of Crossed Pollution:        WBC, RBC<2%, PLT<5%

 ●  Screen :       8 inch LCD big screen

 ●  Information edit: Input patients’ information, search and print the information in turn.

 ●  Alarm/hint :     20 alarm/hint functions

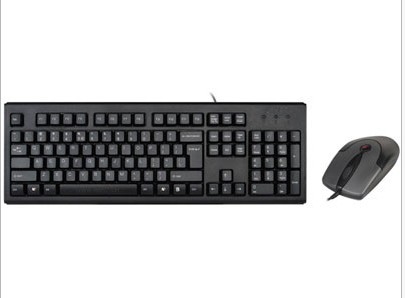

 ●  Input/output interface :One RS232, parallel port for printer, two USB port for mouse, keyboard.

 ●  Printer:            Printer inside/ outside (optional)

 ●  Working condition:   Temperature:10~30℃,Relative humidity:10%~90%

 ●  Power:

                Voltage:             a.c .220V, 50Hz

                Input consumption:   150W

                Fuse:               AC 220V, 50Hz  2A

 ●  Dimension:                 420(H)*280(W)*400(D)cm3

 ●  Weight:                        30kg
